Curved Dormer Window Roof, Maltby
A small curved roof over a dormer bay window in Maltby, tucked under the main tiled roof and finished in grey Fatra single ply with a black edge trim.
- Client
- Private client
- Location
- Maltby
- System
- Fatra single ply
- Area
- Curved bay roof
The same roof, before and after
The Challenge
Small roofs can be the fiddliest. This one is a half-round roof over a curved bay window, tucked in under the slope of the main tiled roof and worked from a scaffold. The front edge curves the whole way round, and the back edge is where it meets the tiles, so there is no simple straight run to work from.
Our Solution

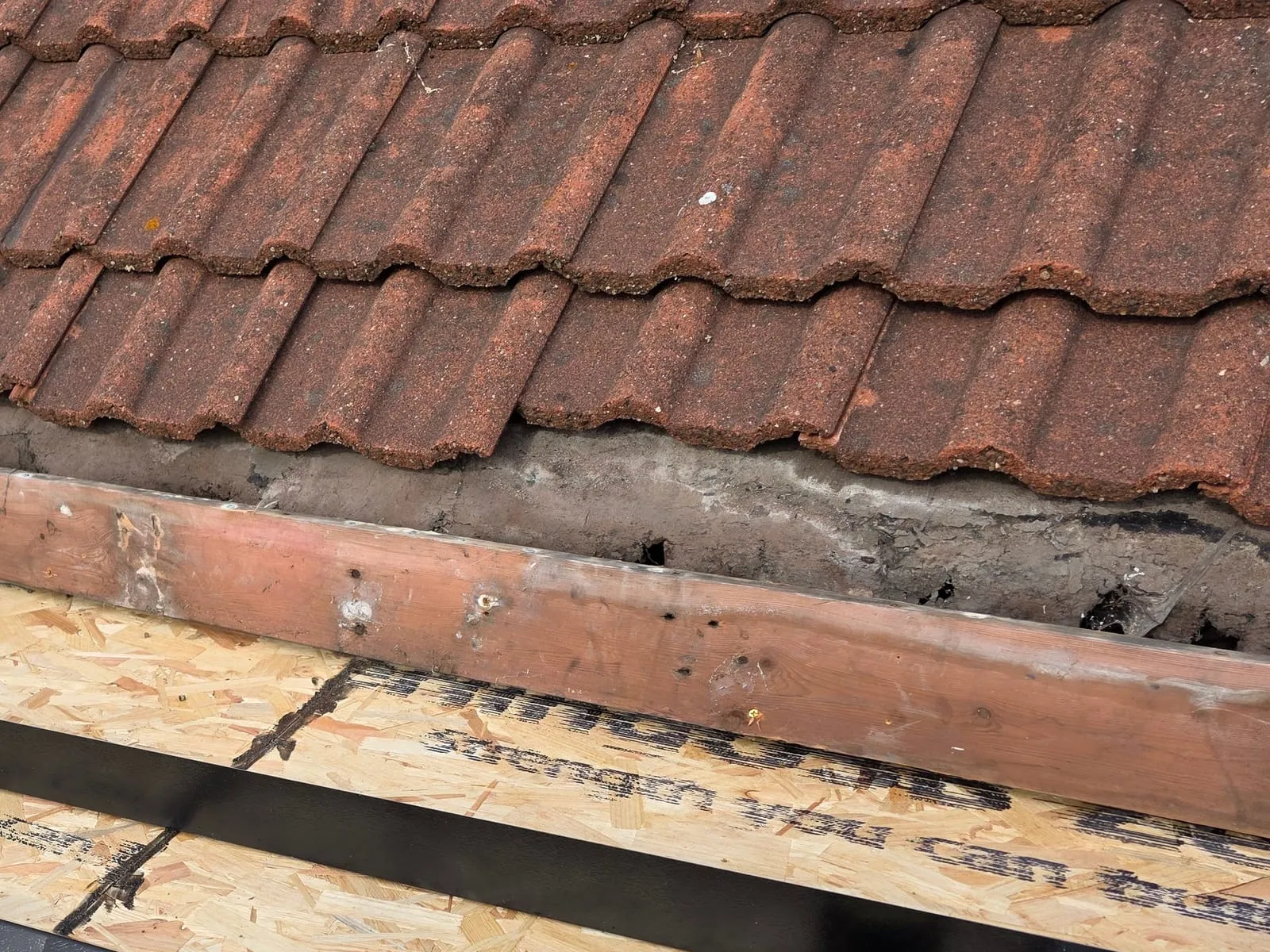

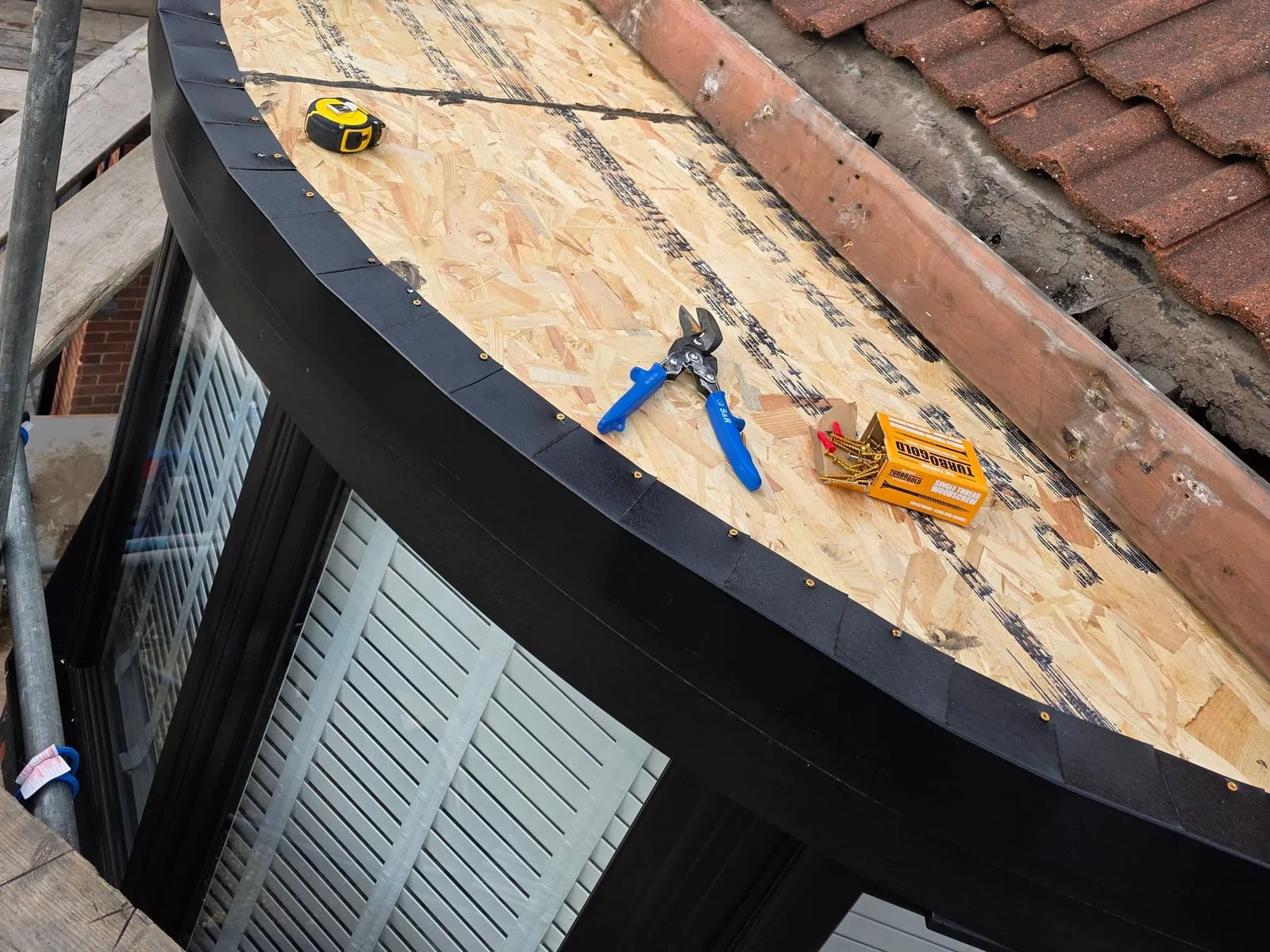

Our photos from 5 October 2025 show a new OSB deck on the bay, the bottom of the tiled roof opened up behind it, and a black edge trim going on round the curve. Then grey Fatra single ply over the deck, following the curve out to the trim. At the back it is turned up where the bay meets the main roof, with the bottom row of tiles lapping over it.
The Outcome

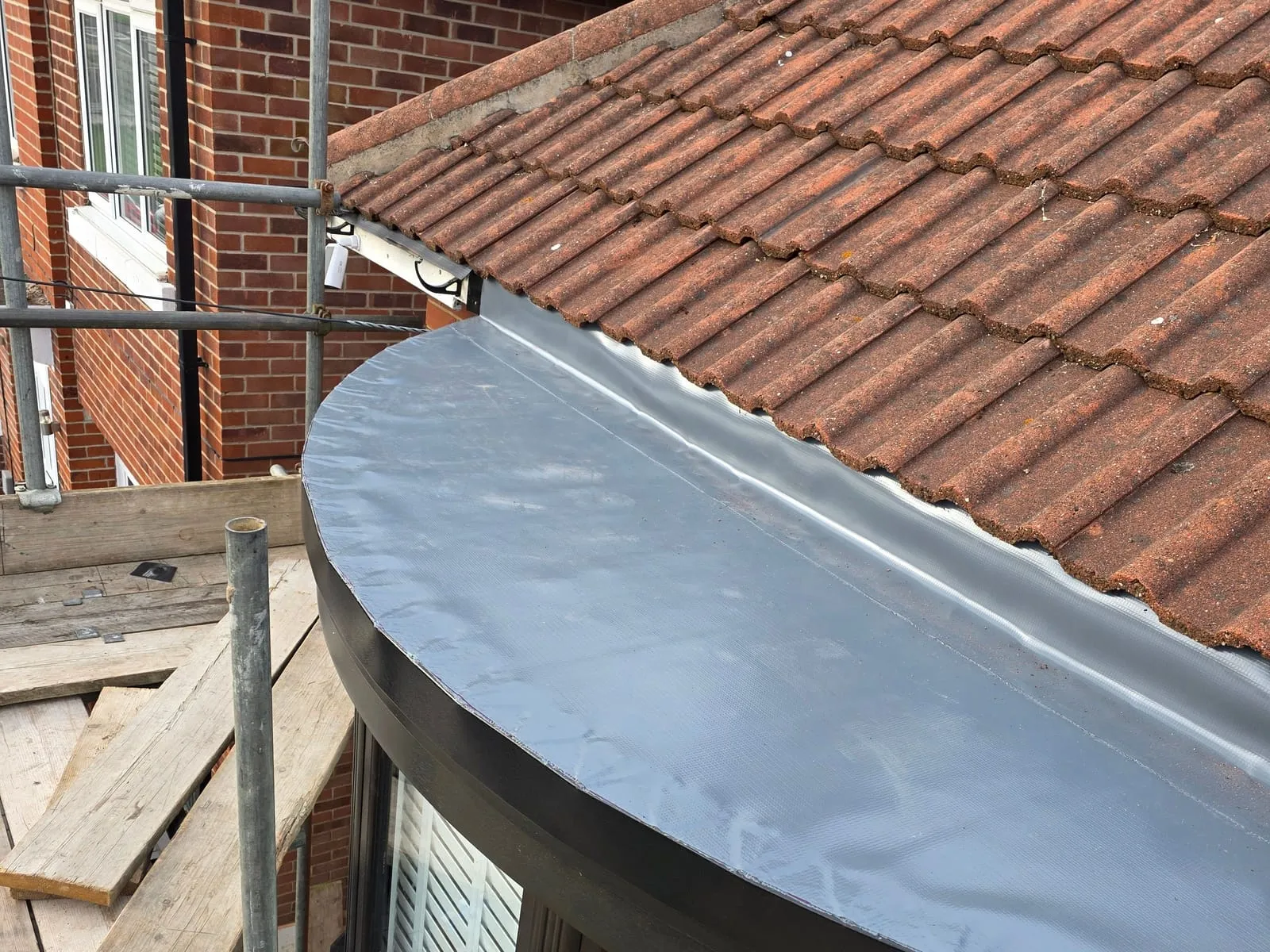

Bare deck to finished roof in an afternoon. The finished photos, at 4.29 pm, show one smooth grey surface following the curve, a crisp black edge, and the tiles lapping over the membrane at the back.
Dormer and bay roofs
A dormer or bay roof is small, but it is up high and it meets the main roof, so it needs scaffolding and careful detail where the two roofs join. Our estimator adds scaffolding for a roof at first floor or higher, like a dormer, and our pricing guide shows what else goes into the price.
Another Maltby job: a flat roof with a lantern, finished in the same Fatra single ply.
The job, in photos
